Backlight Kit for the Original GameBoy DMG - Cool White

Backlight Kit for the Original GameBoy DMG - Cool White

£6.00 GBP
£6.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 3 left
  • Spend £10 on parts to get 10% off all Game Boy parts using code DMG1989 at checkout
  • FREE DELIVERY on all orders over £15.00 - UK Only
Features:
  • Built in customized resistor for EXCELLENT CONTRAST and EASY INSTALLATION.
  • Adhesive positioning strip to keep the backlight in place.
  • SUPER DIFFUSION - minimal "hot-spotting" and extremely even light distribution.
  • No cutting of the LCD frame required.
  • Installing a backlight naturally reduces perceived contrast of the display

Installation tips:

  1. Make sure that you install the polarization film the right way up - with the curved/concave side facing the LCD (UP) and the side that has a blue stripe on the protective film facing the backlight panel (DOWN).
  2. Remove the protective film from BOTH SIDES of the polarizer and from the FRONT of the backlight panel.
  3. Use the adhesive strip located on the back of the panel to fix the backlight in place.
  4. Position as flat as you can to the bottom side of the LCD frame - this ensures that the reflector bar (the dark area in the lower section of the backlight) is straight and sits below the bottom row of pixels
Specification:
  • Color:White
  • Compatible with: Nintendo Gameboy DMG-01

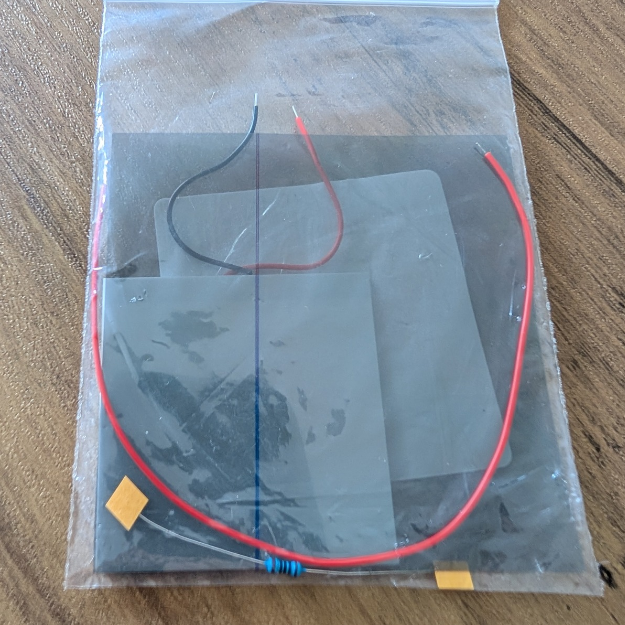

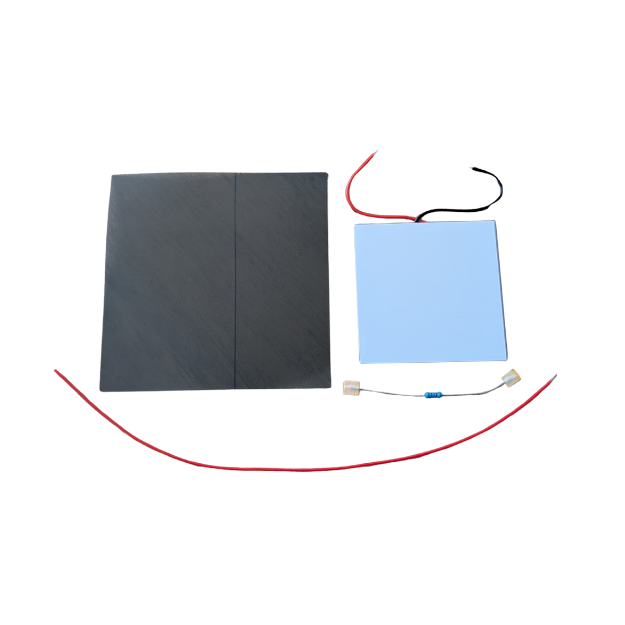

Package included:

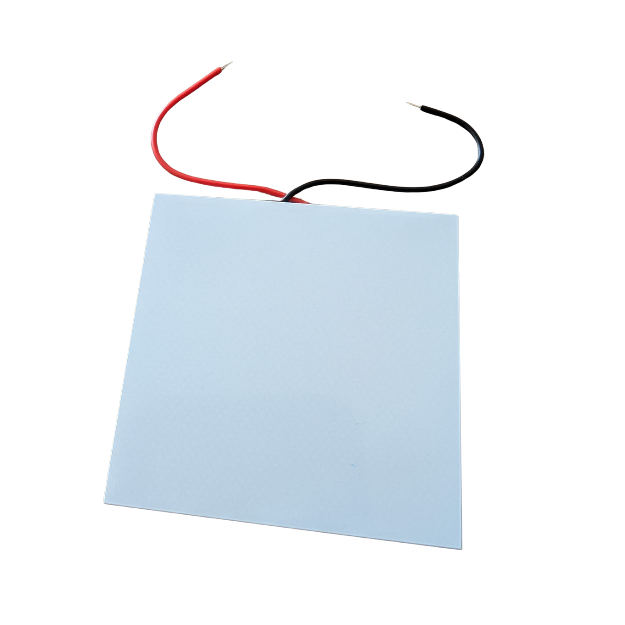

  • 1 x White Backlight

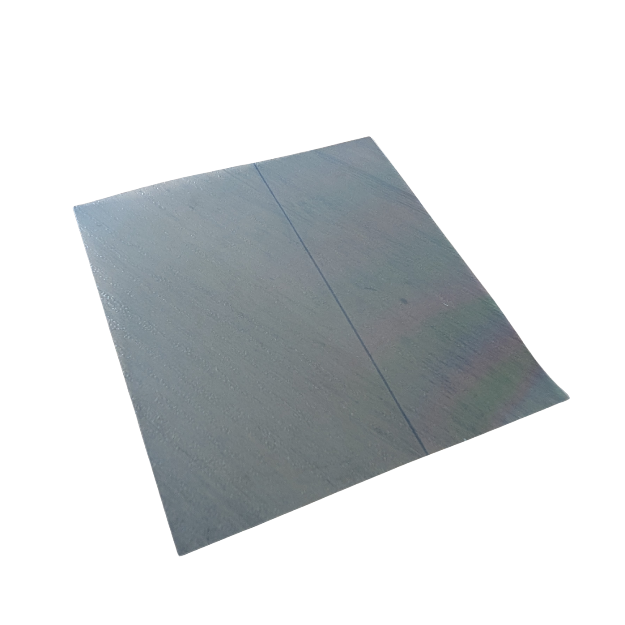

  • 1 x Polarising Filter

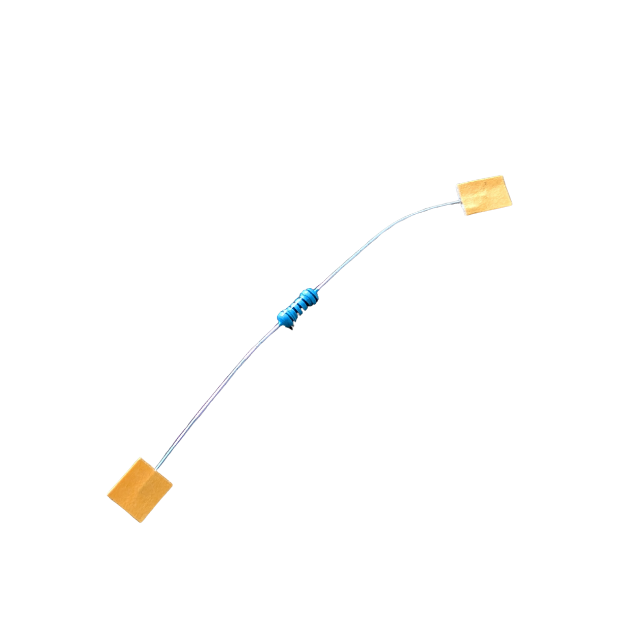

  • 1 x 100ohm Resistor

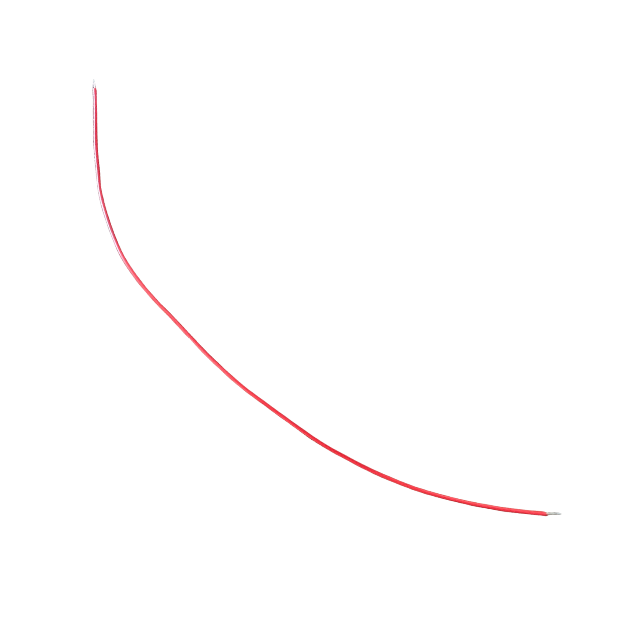

  • 1 x Wires
