Game Boy Advance Inductor & Capacitor Kit (AGB-001) – Fix Power & Sound Issues

Restore your Game Boy Advance (AGB-001) with this complete capacitor and inductor repair kit.

Over time, the original capacitors and power components in the GBA degrade, leading to issues like no power, random shutdowns, or poor audio performance. This kit includes key components needed to refresh the power and audio circuits and bring your console back to life.

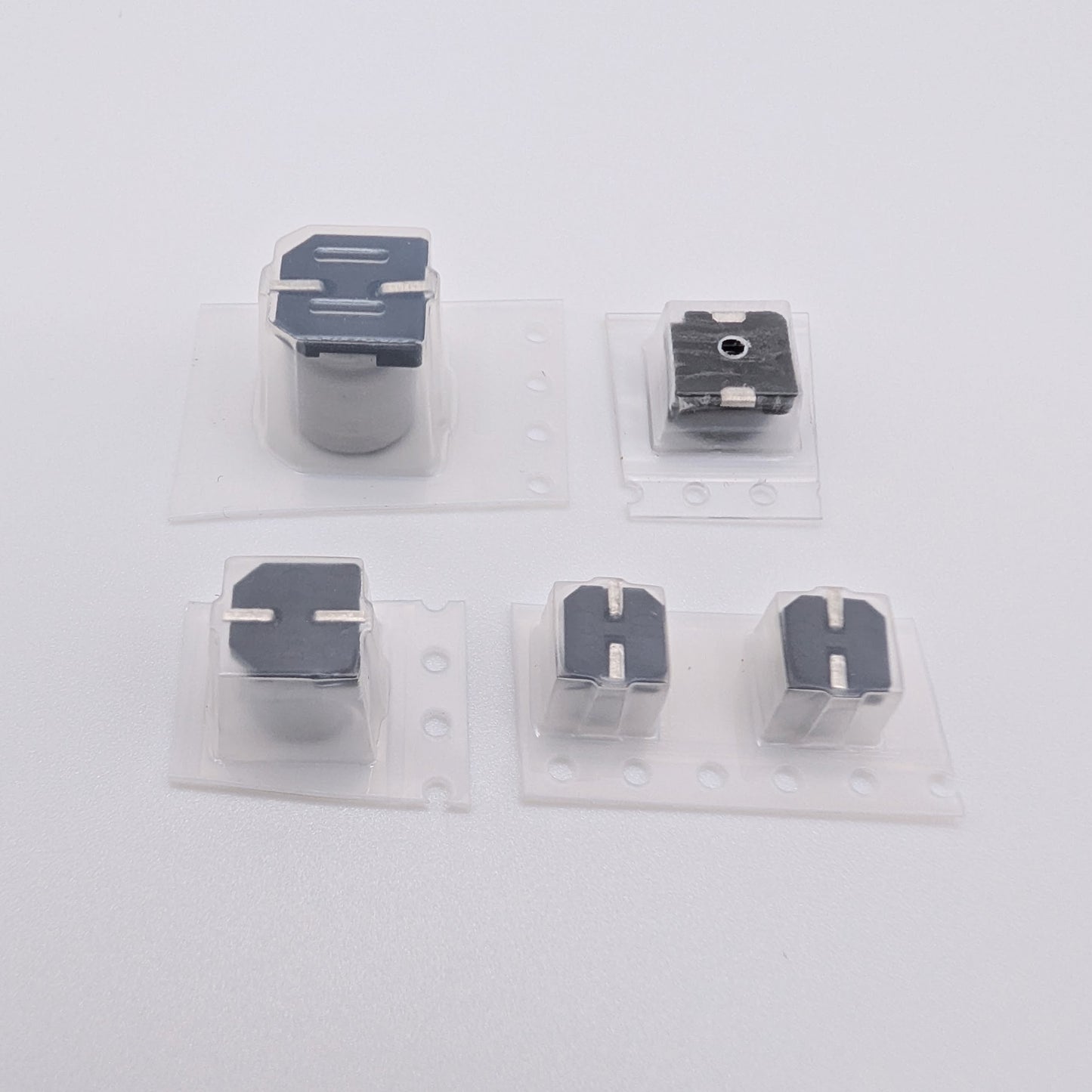

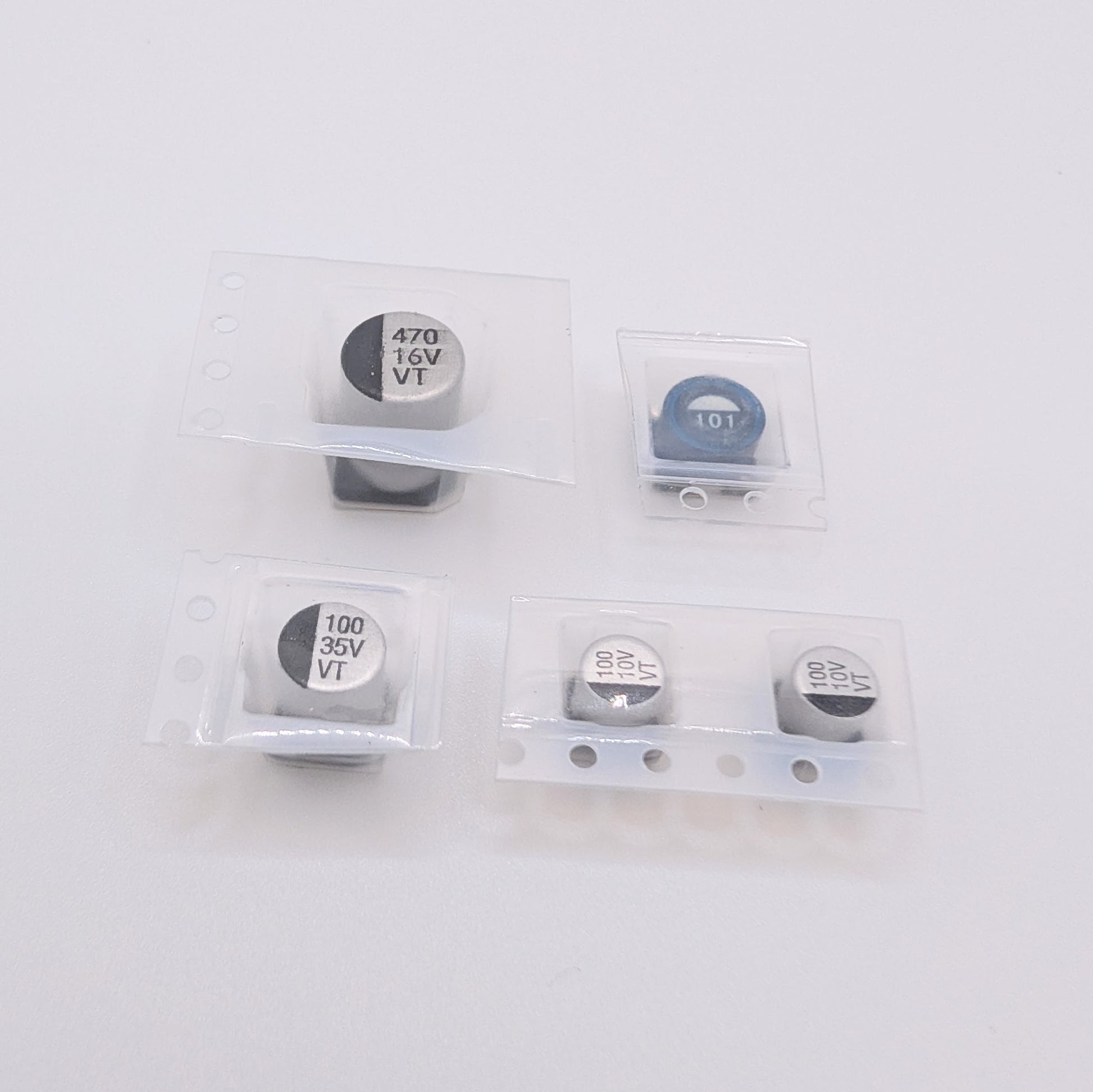

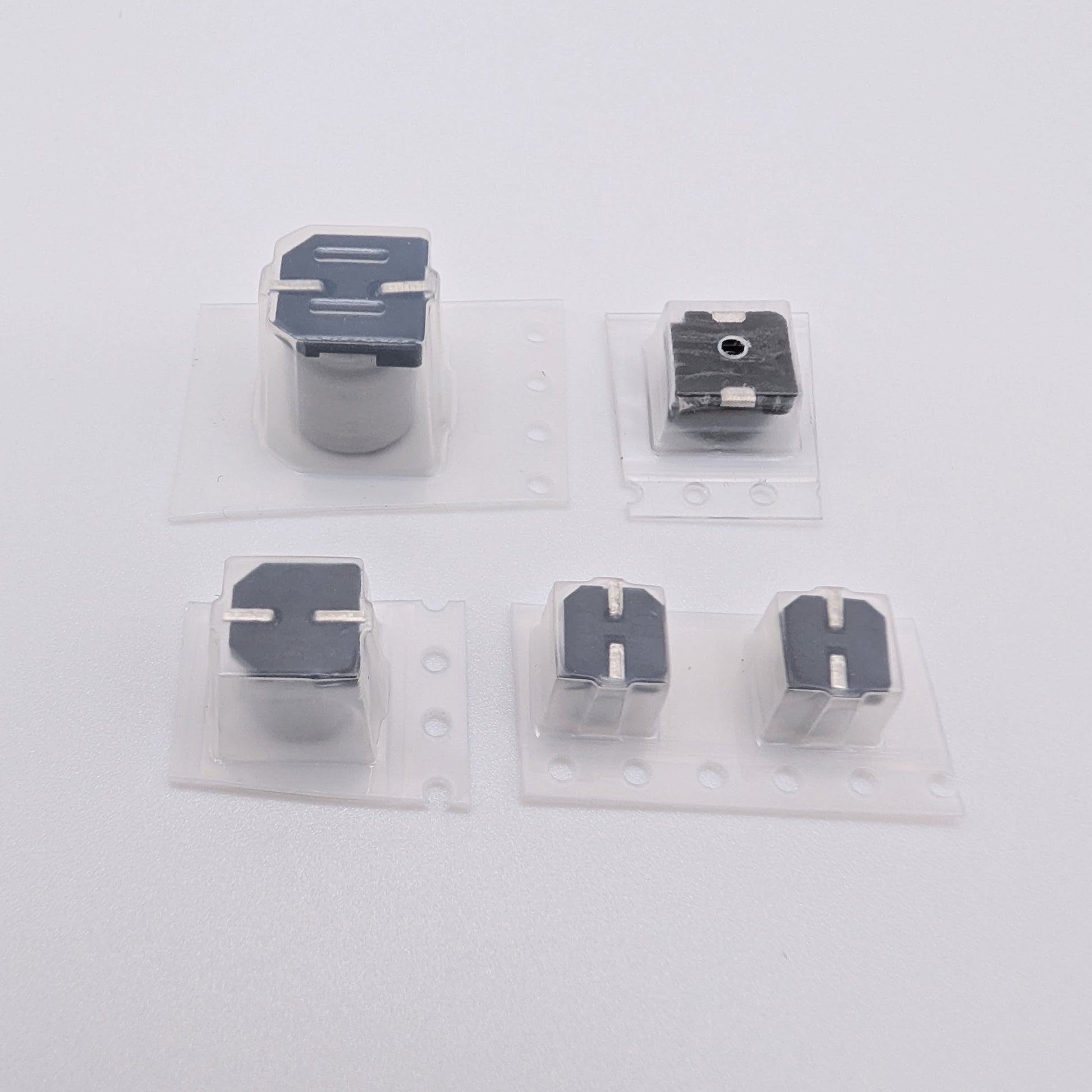

What’s Included

• 1 × 470µF 16V capacitor
• 1 × 100µF 35V capacitor
• 2 × 100µF 10V capacitors
• 1 × Inductor (marked “101” – 100µH)

Covers the main power filtering, audio circuit, and power regulation components

Compatible With

• Nintendo Game Boy Advance (AGB-001)
• Compatible with motherboard revisions including:
  • AGB-CPU-01
  • AGB-CPU-02
  • AGB-CPU-03
  • AGB-CPU-04 and later

Fixes Common Issues

• Console not powering on
• Power LED flickering or unstable
• Random shutdowns or resets
• No sound or distorted audio
• Power noise / whining from speaker

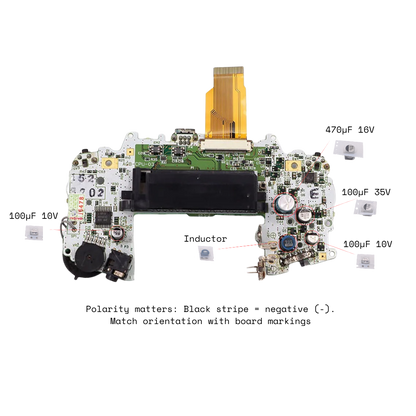

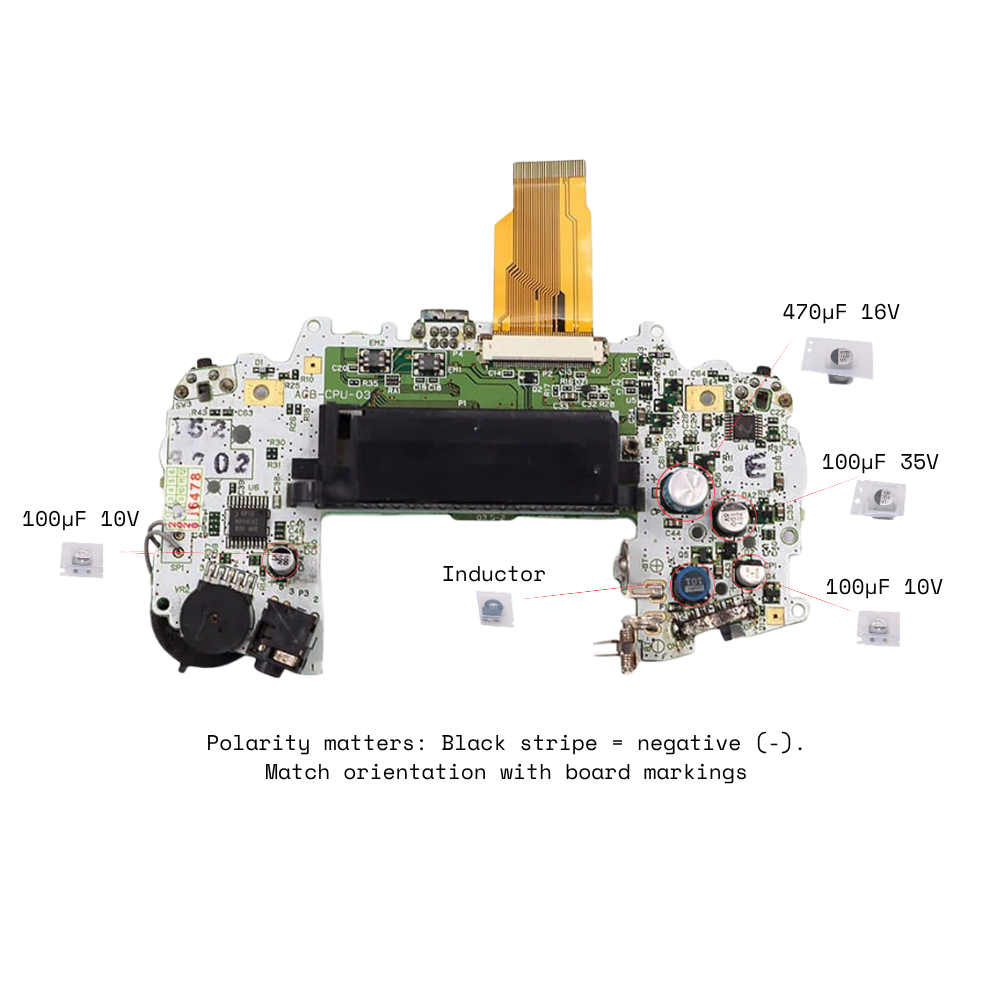

Installation Guide (Size-Based Placement)

For easy installation, components can be matched by size:

• Largest capacitor (470µF) → main power position (top-right)
• Medium capacitor (100µF 35V) → position directly below the largest
• Two smaller capacitors (100µF 10V) → remaining two positions
• Inductor (101) → blue inductor in power circuit
• Polarity matters: stripe = negative (-)
• See image for details

Installation Notes:

• Match orientation with the board’s markings
• Soldering required (basic to intermediate skill level)
• Take care and use precaution

Why Choose This Kit?

• Complete solution (capacitors + inductor included)
• Correct values for GBA power and audio circuits
• Size-based installation guide for easy use
• Ideal for repair, restoration, and modding projects
• Tested and compatible with common GBA board revisions

Bring your Game Boy Advance back to reliable working condition with this all-in-one capacitor repair kit.
